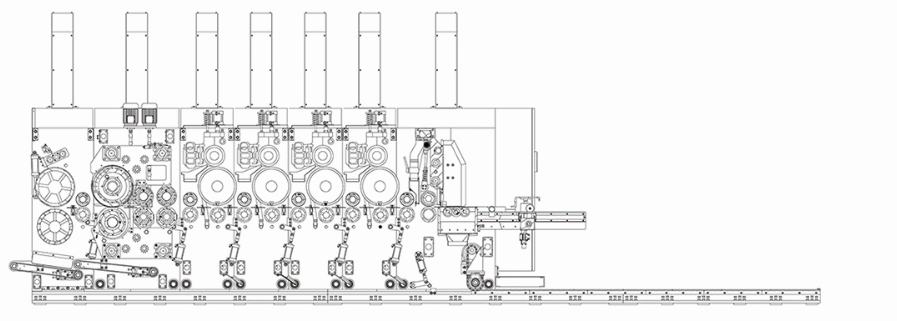

450片高速印刷開槽模切機(上印-導紙輪式)

功能與特點:

★伺服前緣送紙系統，真空吸附傳送，適用于各種瓦型紙板，增加薄紙板及曲翹紙板傳送穩定，高速、精準。

★主機、風機、相位電機等各部均采用變頻器控制，調速平穩、省電、準確、可靠。

★高精度齒輪傳動，精準耐用:2OCrMnTi高頻淬火，硬度HRC58-62,達國家6級精度，長期使用，套印精度高。

★整機自動歸零系統，儲存常用訂單，快速換單，操作便捷。

★主要傳動軸承日本NSK，傳動軸全部動平衡校正，確保傳動穩定性。

★機械式自動上油潤滑系統，配備自動平衡裝置，增強傳動齒輪的使用壽命。

Functions and characteristics:

★Servo feeding system, vacuum adsorption transmission, suitable for all kinds of corrugated cardboard, increased thin

cardboard and warped cardboard transmission stability,high speed,precision.

★The main engine, fan, phase motor and other parts are controlled by frequency converter.The speed regulation is stable,

power saving,accurate and reliable.

★High precision gear transmission, precision and durability:2OCrMnTi high frequency quenching, hardness HRC58 - 62, up

to the national class level 6 accuracy,long-term use, high overprint accuracy.

★Automatic Zero Return System,Storage of Order,Quick Order Change,Convenient Operation.

★Main drive bearings NSK of Japan, all dynamic balance correction of drive shaft to ensure transmission stability.

★Mechanical autormatic lubrication system,equipped with automatic balancing device,enhances the service life of

transmission gears.

技術參數The Machine technique parameter:

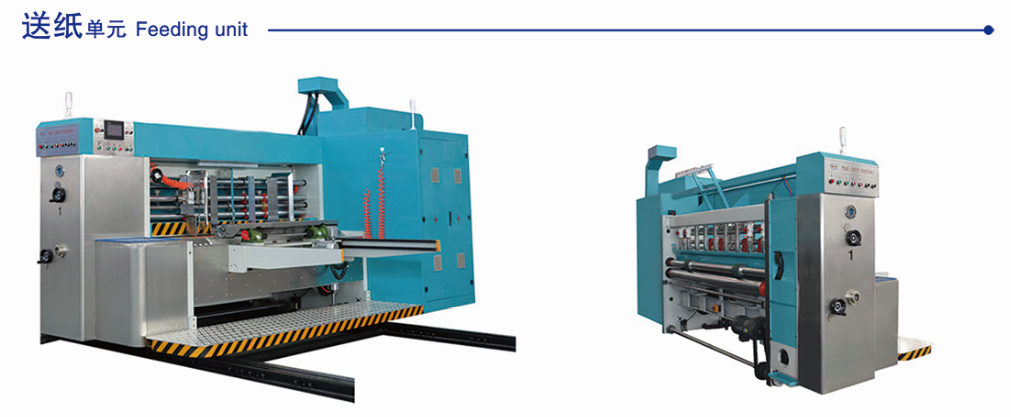

★伺服前緣送紙系統，真空吸附傳送，變頻調控風量，

增加紙板輸送穩定性、準確性。

★快換式送紙膠棍機構，包裹軟橡膠，經久耐用，設備

維護方便。

★吸風除塵系統，可大量清除紙板表面紙屑粉塵,提高

印刷品質。

★左、右側擋板、后托板均為電腦操控，精密導向機構，

位移平穩，附帶側拍功能。

★選配免壓送紙系統。

★Servo lead feeder system,vacuum adsorption transmission, frequency control of air flow,

increase thestability and accuracy of paperboard conveying.

★Fast-changing paper-feeding cot mechanism, wrapped with soft rubber,durable, easy

maintenance of equipment.

★Air suction and dust removal system can remove a large amount of paper dust on the surface

ofcardboard and improve printing quality.

★Left and right bafles and rear brackets are all controlled by computer with precise guiding

mechanism,stable displacement and side beat function.

Selection of Pressure--free Paper Feeding System.

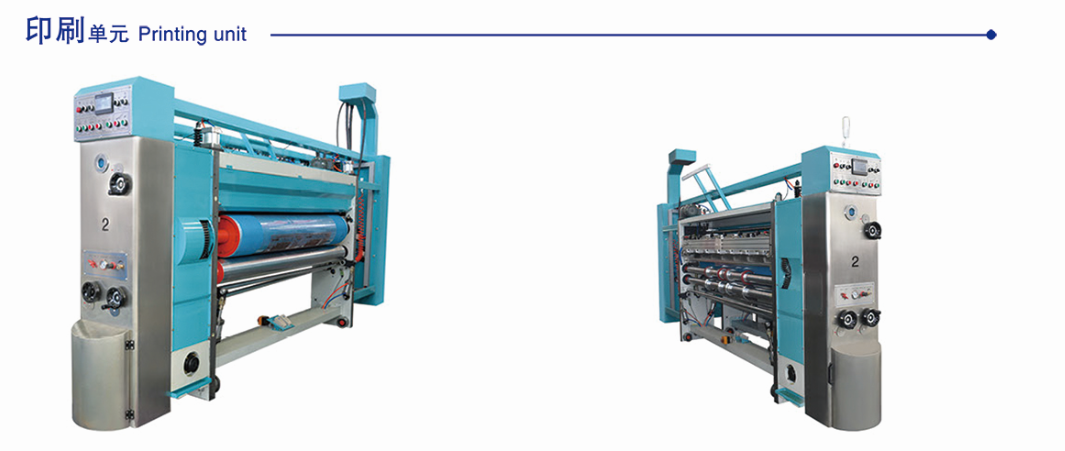

★印刷能橫向電腦調整，調幅±10mm。

★封閉式刮刀配陶瓷網紋棍，實現高網點精密印刷，刮刀受力均勻，

調整維護簡單。

★精密陶瓷網紋棍，其網紋棍配合送紙系統，氣壓式自動升降裝置。

★氣動式雙隔膜泵，快速清洗功能，供墨、循環穩定，操作保養簡單。

★棘輪式快速掛版裝置，全版掛版溝，適用9mm掛版條，附腳踏開

關電動控制正反轉。

★快速更換膠棍、網混裝置。

★擦版記憶、自動復位系統。

★快移式送紙環，快速、方便。

★選配傾斜校正裝置，貼版時的傾斜誤差可在版幌上快速糾正。

★Transverse computer adjustment of printing ollr, adjustment range ( ±10mm).

★Closed doctor blade is equipped with ceramic anilox roller to realize high dot precision printing.

The doctor blade is uniformly loaded and easy to adjust and maintain.

★Precision ceramic anilox rll, its with paper feeding system, pneumatic automatic liting device.

★Pneumatic double diaphragm pump, fast cleaning function, ink supply, stable circulation, simple

operation and maintenance.

★Ratchet type quick plate hanging device,hanging slot, suitable for 9mm plate hanging, with pedal

switch electric control positive and negative.

Rapid replacement of rubber roller and anilox rollers.

★Clean plate memory and Automatic Reset System.

Fast-moving paper feeding ring,fast and convenient.

★With the inclination correction device, the inclination error can be quickly corrected on the plate roll

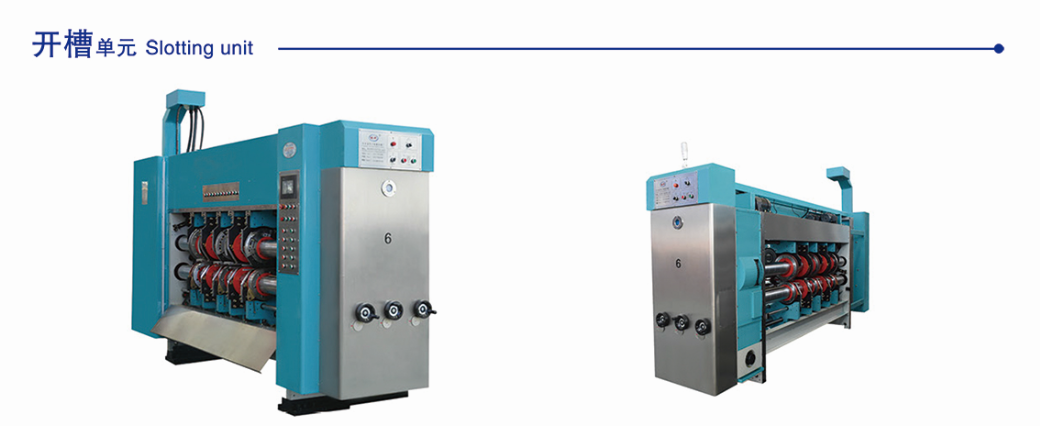

★開槽刀輪形式:雙刀單軸式

★合金鋼材料經熱處理研磨鋸齒形開槽刀片，硬度和韌性具佳

★壓線輪、刀座橫移、相位調整、復位等均可電腦控制(自動或

手動)電動控制，換單迅速

★上下刀聯動，具備切刀入槽定位功能，確保刀座左右調整同

步移動，分離式下刀片，保養及更換方便，延長切刀壽命

★預壓傳送，預壓輪表面包裹優力膠，避免對紙板的損傷

★壓線輪內嵌優力膠，壓線輪橫移位置可隨開槽刀座同時調整

★中刀橫向位移結構，生產適應性廣

★彈性切角刀結構，三層、五層紙板切角無需調整

★精密直線導軌，配合滾珠絲杠，使開槽刀座移動更靈活、準確

Slotting knife wheel form: double knife single shaft type.

★Alloy steel materials of heat-treatment grinding saw tooth slot blade,Better hardness and toug

*Creasing wheel、knife holder sidesway、Phase adjust、reset all can computer control (au

or Manual)electrical control. quickly change order.

★Upper and lower blade linkage with knife into the slot positioning function,Ensure the knife

left and right adjusted synchronous movement ,separate lower blades,convenient mainten

and replacement, extendthe life of the knife.

★Pre- creasing transfer, the pre- creasing wheel surface wrap rubber.To avoid damage in the cardb

★Creasing wheel inside embedded rubber,creasing wheel transverse move position can be

adjusted with slotting knife holder at the same time.

★Middle Knife Transverse move displacement of the structure, the production of wide adatat

★Elastic Angle cutter structure, three, five layers cardboard corner cut without adjustment.

★Precision linear guide,cooperate with ball screw roller,making slotted knife holder is more

and accurate.

★配備進口快換式聚氨酯膠墊，更換方便，具有單向離合器作

線速度補償功能，可確保膠墊磨損后與磨損前模切出的紙板

完全一致。

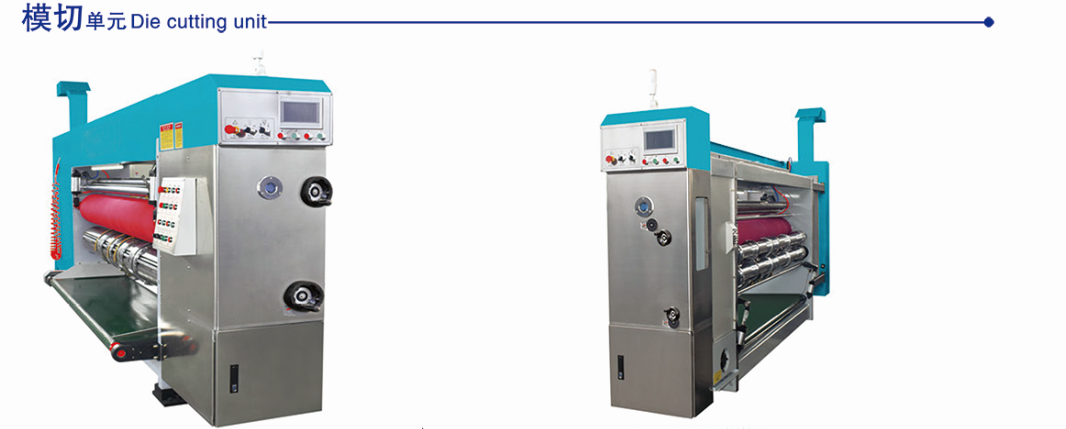

★工作中模切膠墊滾筒機械螺旋式左右自動橫移(±20mm),使

切口刀痕不重復，延長膠墊使用壽命。

★膠墊棍與模切棍間隙采用氣動控制，正常送紙時膠墊棍下降

到工作位置，停止送紙時膠墊棍自動升起。

★模切能橫向電腦操控，電動調整，調幅±10mm。

★膠墊修正機構，增加膠墊使用次數，降低消耗。

★模切底部裝有廢紙輸送裝置,將模切后的紙屑輸送到設備以

外，方便清理。

★Equipped with imported quick change type polyurethane rubber,easy to change,with on

clutch as linear velocity compensation function,Ensures the rubber wear before and wed

die cut out the cardboard is same.

★In the work, the die-cut rubber rller mat is mechanically spirally left and right automatical

traversed ( ±20mm), so that the notch marks are not repeated, and the life of the rubber

extended.

★The gap between the rubber roller and the die-cut roller is pneumatically controlled.Whe

paper is nomally, the rubber roller is lowered to the working position, and the rubber rolle

automatcally raised when feeder paper is stopped.

★Die-cutting oller horizontal computer control, electric adjustment, amplitude modulation

★Rubber roller mat correction mechanism to increase the number of times the pad is used

reduce consumption.

★The bottom of the die-cutting is equipped with a waste paper conveying device to transp

die-cut paper scraps outside the equipment for easy cleaning.
